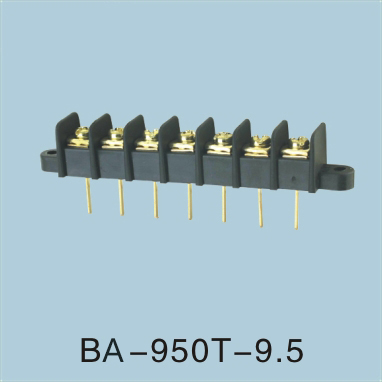

BA-950T-9.5
Material and specification processing
Plastic parts: PA66 UL 94V-0
Terminal: brass, 0.8 thick tin plating
Screws: steel, M3 nickel plated
performance
Rated voltage / current: 300V/25A
Service temperature: -40 ~ 105 C
Withstand voltage: AC2000V/Min
Insulation impedance: 500M ohm /DC500V
Applicable line diameter: 22~14AWG
Maximum locking torque: 0.5N, m 4,4Lb, in
