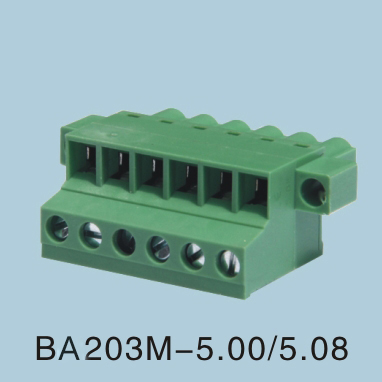

BA203M-5.00/5.08
Material and electroplating
Screw: M2 copper galvanized
Contact material: phosphor bronze
Plastic parts: PA66 UL94V-0
Electrical performance
Rated voltage: 150V
Rated current: 8A
Contact resistance: 20m ohm
Insulation resistance: 5000M ohm \1000V
Withstand voltage: AC1500V\1Min
Using line diameter: 28-14AWG 1.5mm2
Mechanical properties
Temperature range: -40 DEG to 105 DEG C
Instantaneous temperature: 2505 seconds
Torque: 0.4Nm (3.6lb.in)
Wire length: 7-8mm
