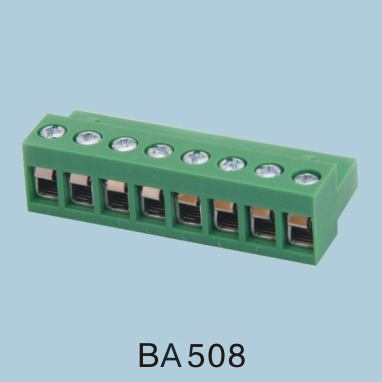

BA508
Material and electroplating
Screw: M2.5 copper galvanized
Contact material: phosphor bronze
Plastic parts: PA66 UL94V-0
Electrical performance
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20m ohm
Insulation resistance: 5000M ohm \1000V
Withstand voltage: AC1500V\1Min
Mechanical properties
Temperature range: -40 - 105
Instantaneous temperature: 2505 seconds
Torque: 0.4Nm (3.6lb.in)
Wire length: 7-8mm
