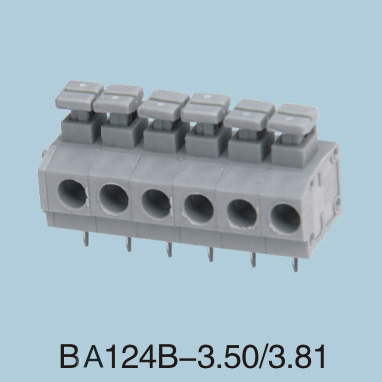

BA124B-3.50/3.81
Material and electroplating
Screw: M2 copper galvanized
Contact material: phosphor bronze
Plastic parts: PA66 UL94V-0
Electrical performance
Rated voltage: 150V
Rated current: 8A
Contact resistance: 20m?
Insulation resistance: 5000M? \1000V
Withstand voltage: AC1500V\1Min
Using line diameter: 28-14AWG 1.5mm2
Mechanical properties
Temperature range: -40 ~ 105
Instantaneous temperature: 2505 seconds
Torque: 0.4Nm (3.61b.in)
Wire length: 7-8mm
